Feature

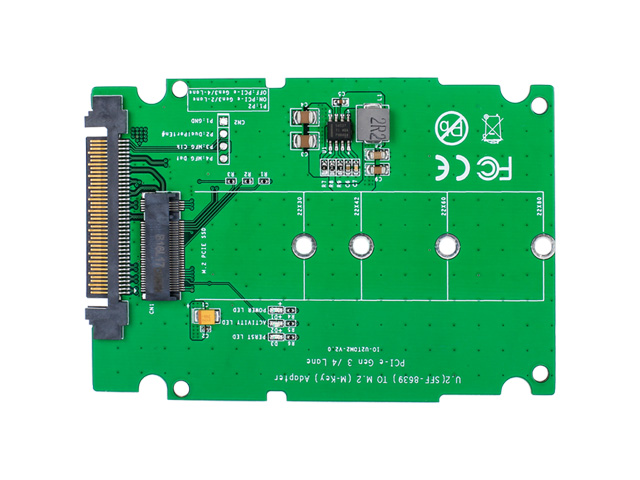

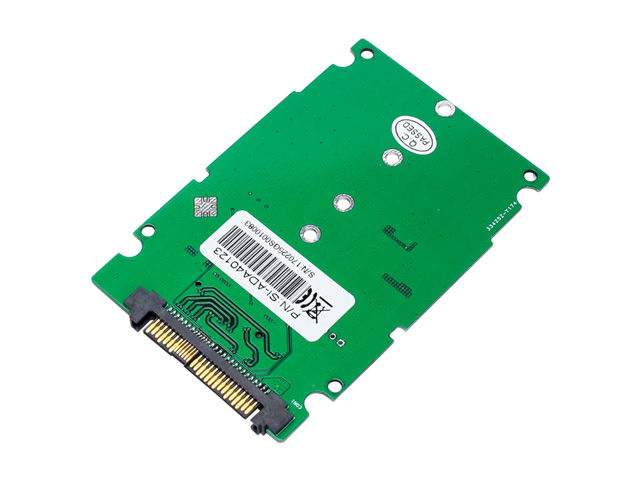

• Buit-in SFF-8639 plug connector
• Buit-in M.2 (NGFF) M-key receptacle connector
• D1 ON indicate M.2/PCI-e 4 Lanes device power OK
• D2 indicate active status
• Supports CLKREQ functions to implement PCIe port circuit power on/off
Specifications
•PCI Express Base Specification Rev 3.0
• SFF 8639 Enterprise SSD Form Factor Version 1.0a
• PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
• PCI Express M.2 Spec. Revision 0.7, Version 1.0
• NVM Express 1.2a
• PWM synchronous buck converter Power IC
• 3.3V, 5A maximum output current
• Short circuit protection
• In-rush current suppression
• Thermal shutdown protection
• ESD HBM (Human Body Mode)/2KV
• ESD CDM (Charged Device Model) /500V
Support M.2 M-key Form Factor
• Type B-M:8022/6022/4222/3022
Operating System Support:
• Windows 7/8/8.1/10 64 bit
• UEFI 2.3.1 or later
